Gipsy Bed

Date: 2018-05-19

Tags: DIY maintenance

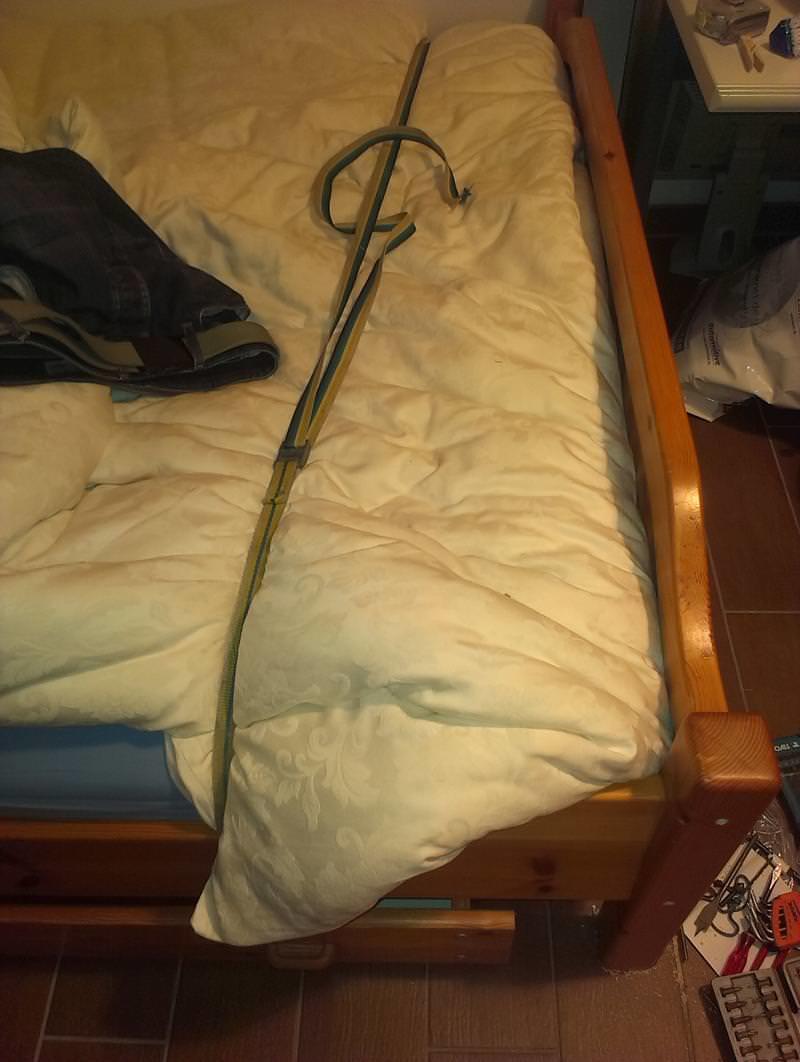

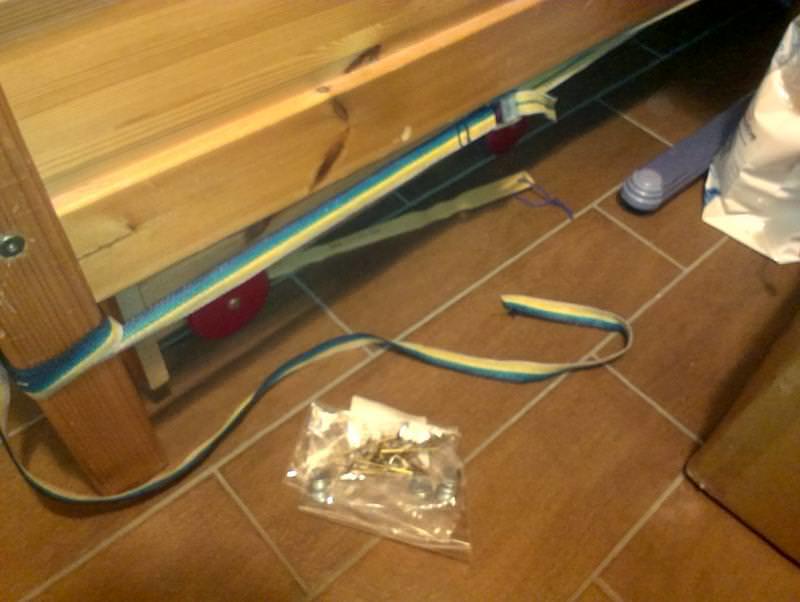

Don’t jump on your bed otherwise you’ll end up having to go to the hardware store. First step: strapping the bed so it doesn’t collapse

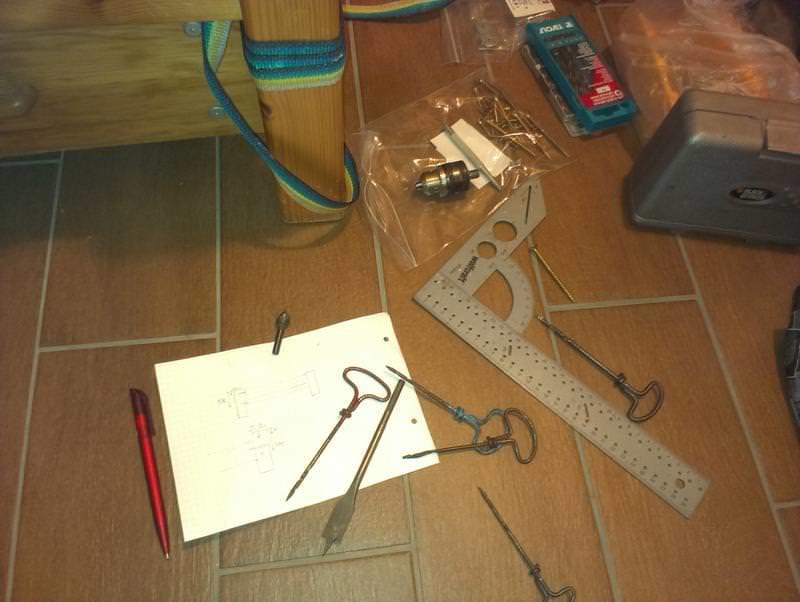

My drill is broken, so I’ll use its chuck and manual drillbits, that will work fine on soft wood

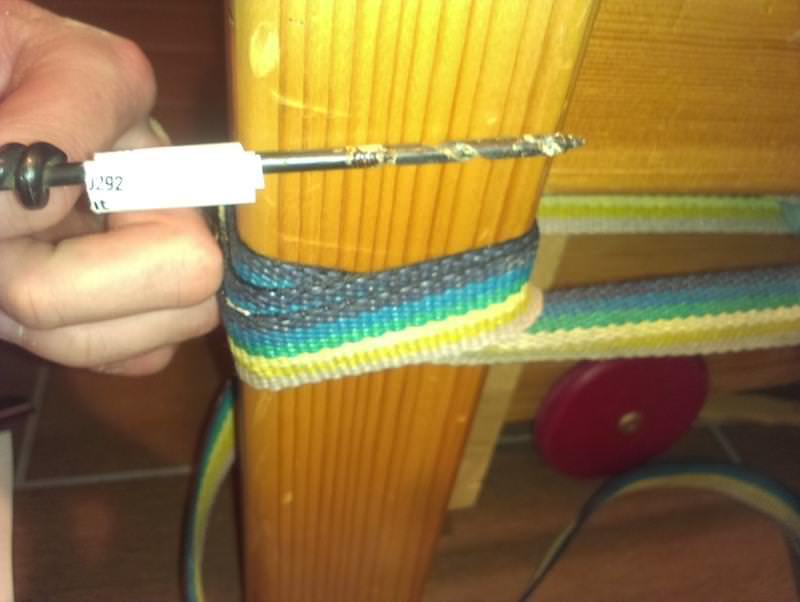

Here’s the good old trick of taping the drillbit to avoid drilling too far

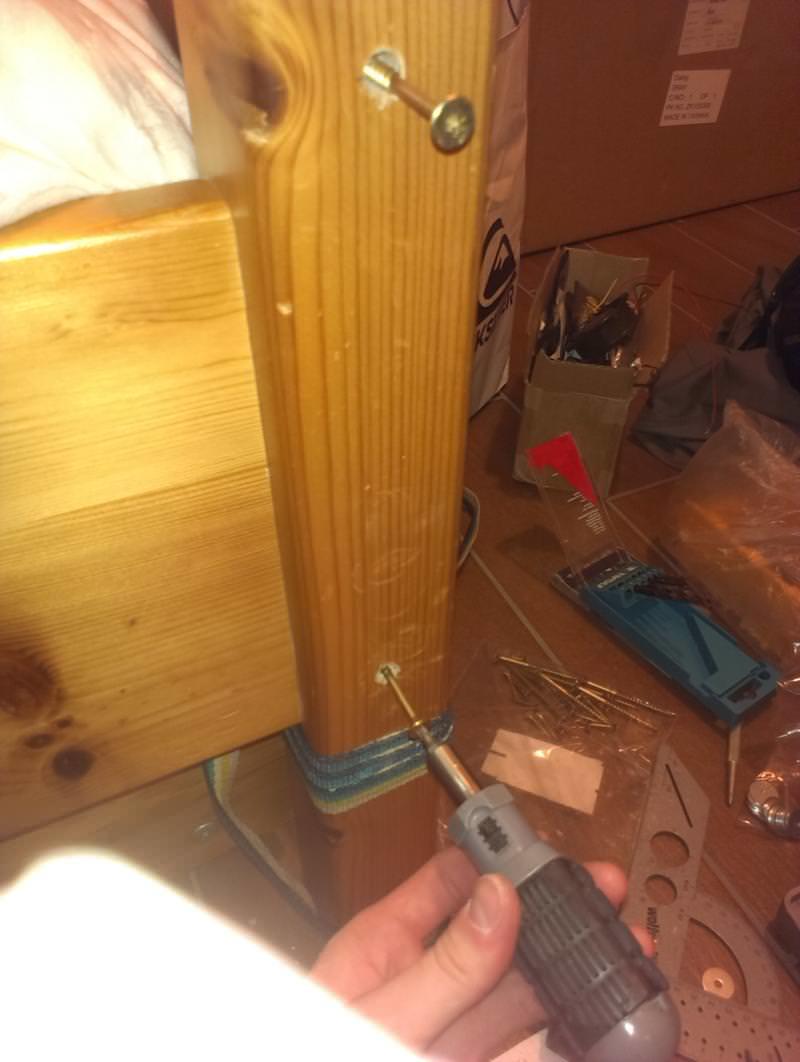

Terrible quality screwdriver to start the job

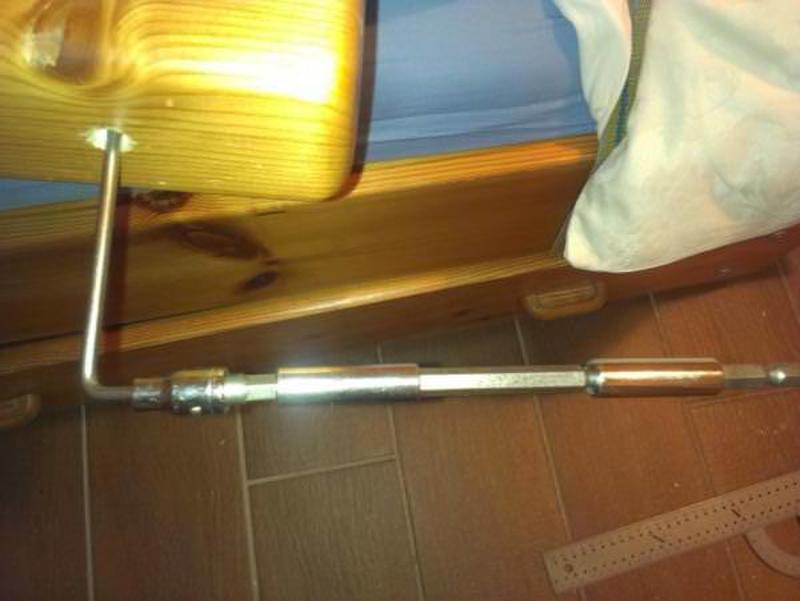

The screw head comes too deep in a narrow recessed hole. That’s a way to get deeper while having enough leverage to get it snug — The screw head comes too deep in a narrow recessed hole.
That’s a way to get deeper while having enough leverage to get it snug

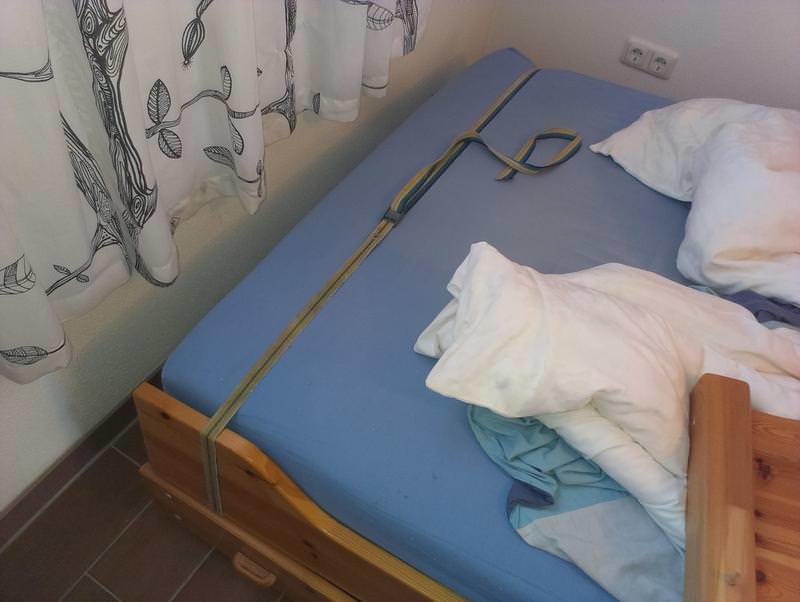

Once this part is fixed, the other part of the bed needs to be strapped to avoid collapsing

Same on the other side

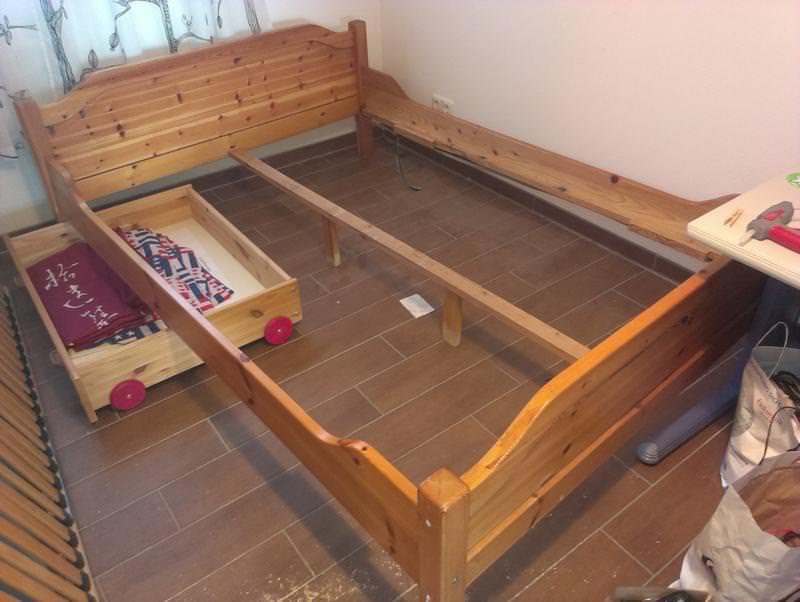

Let’s get rid of the mattress and its frame to make sure it’s all straight

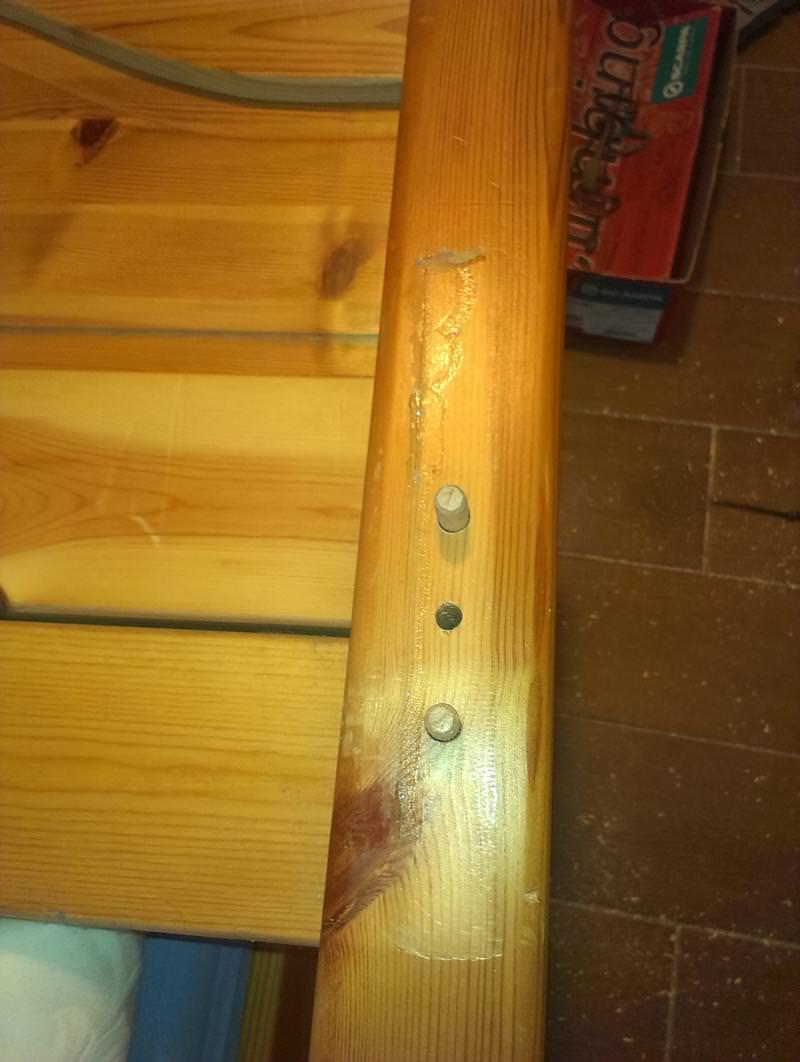

One major issue, holes and pins have become oval, so the sides of the bed sit at an angle increasing the risk of collapse

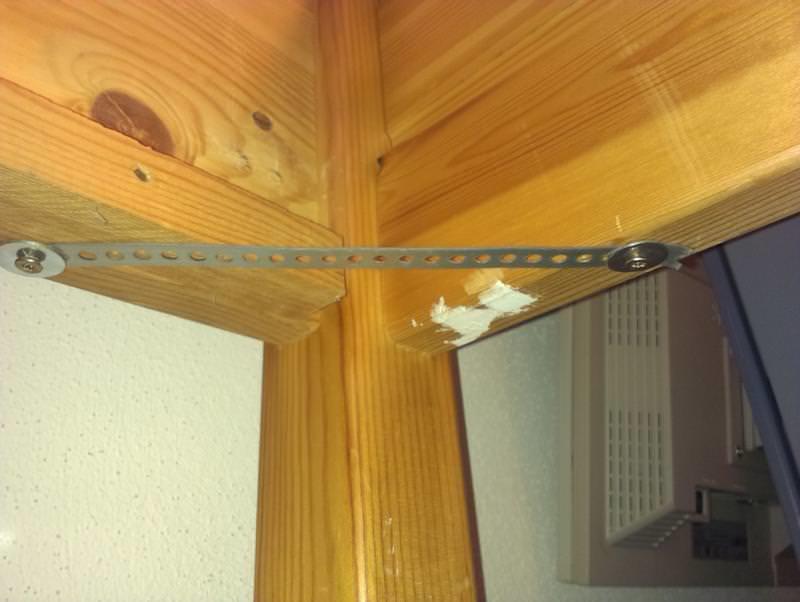

Ugly reinforcement to counter the torque from the frame

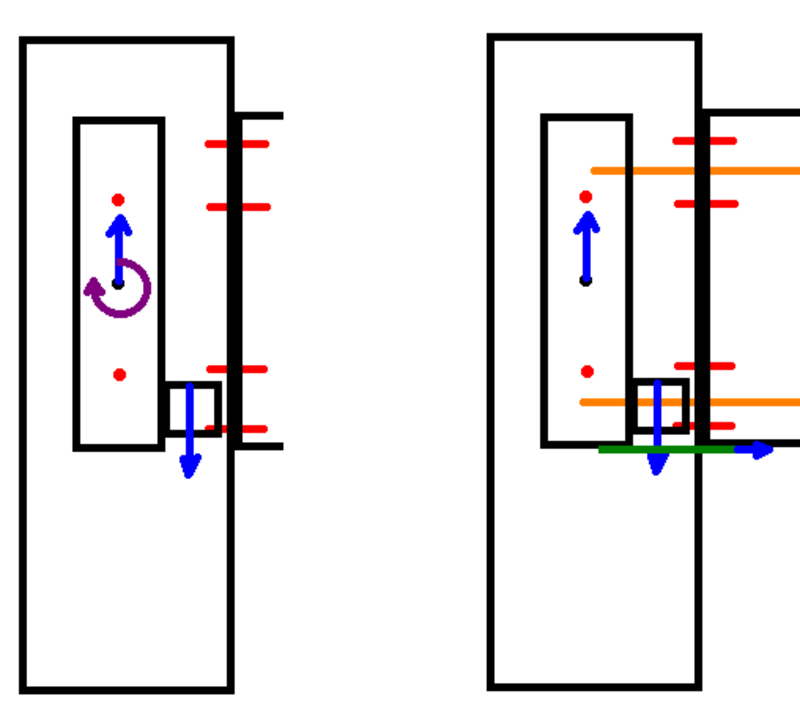

Schematics showing the wood screws in orange and the steel reinforcement in green

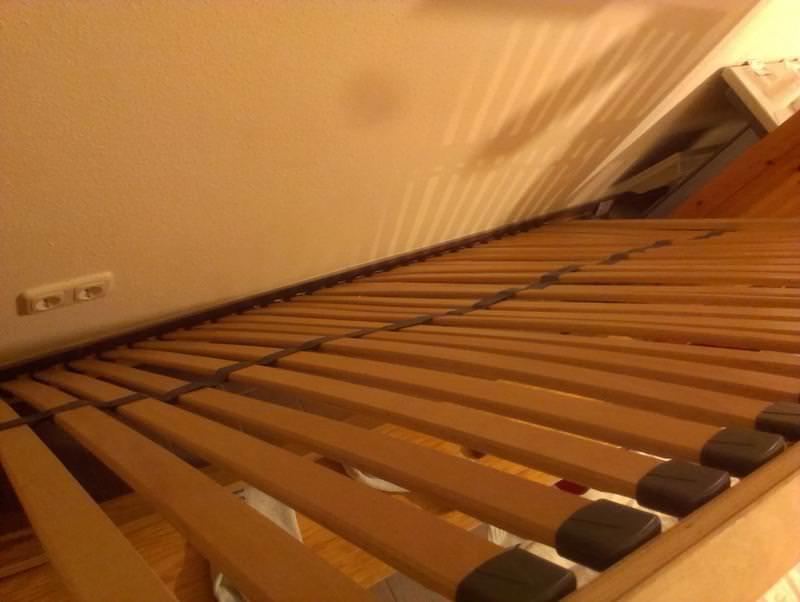

Slats were all bent and had different spring rates, possibly due to humidity or wearout, so I changed all of them

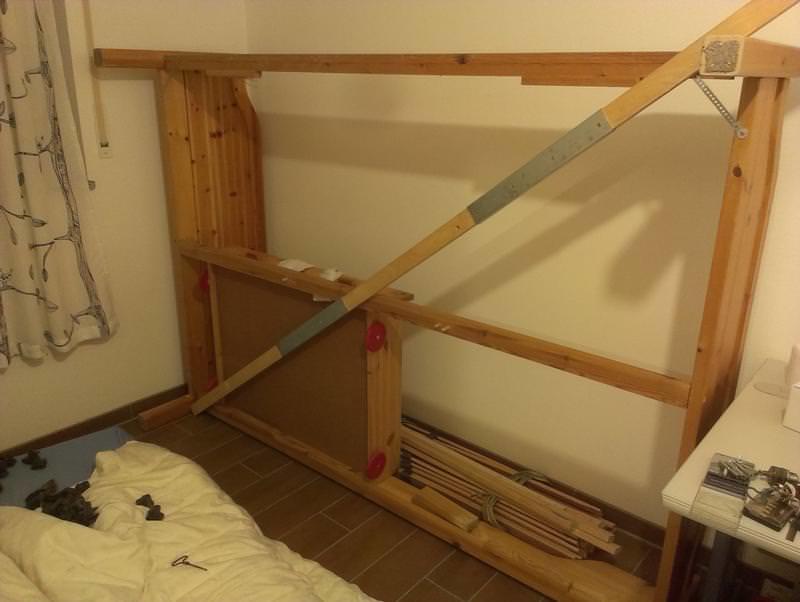

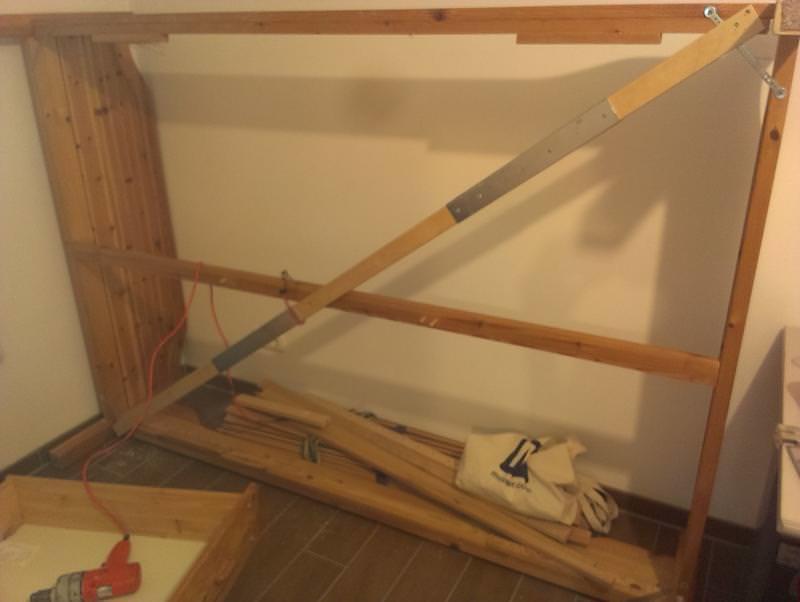

The bed was still shaky, so I reused a plywood beam to make the structure more rigid

I tested the frame by throwing a crate of beers (~20kg) on top of it, it really makes a difference with a stiffer frame that doesn’t squeek

Now I can get fat!
